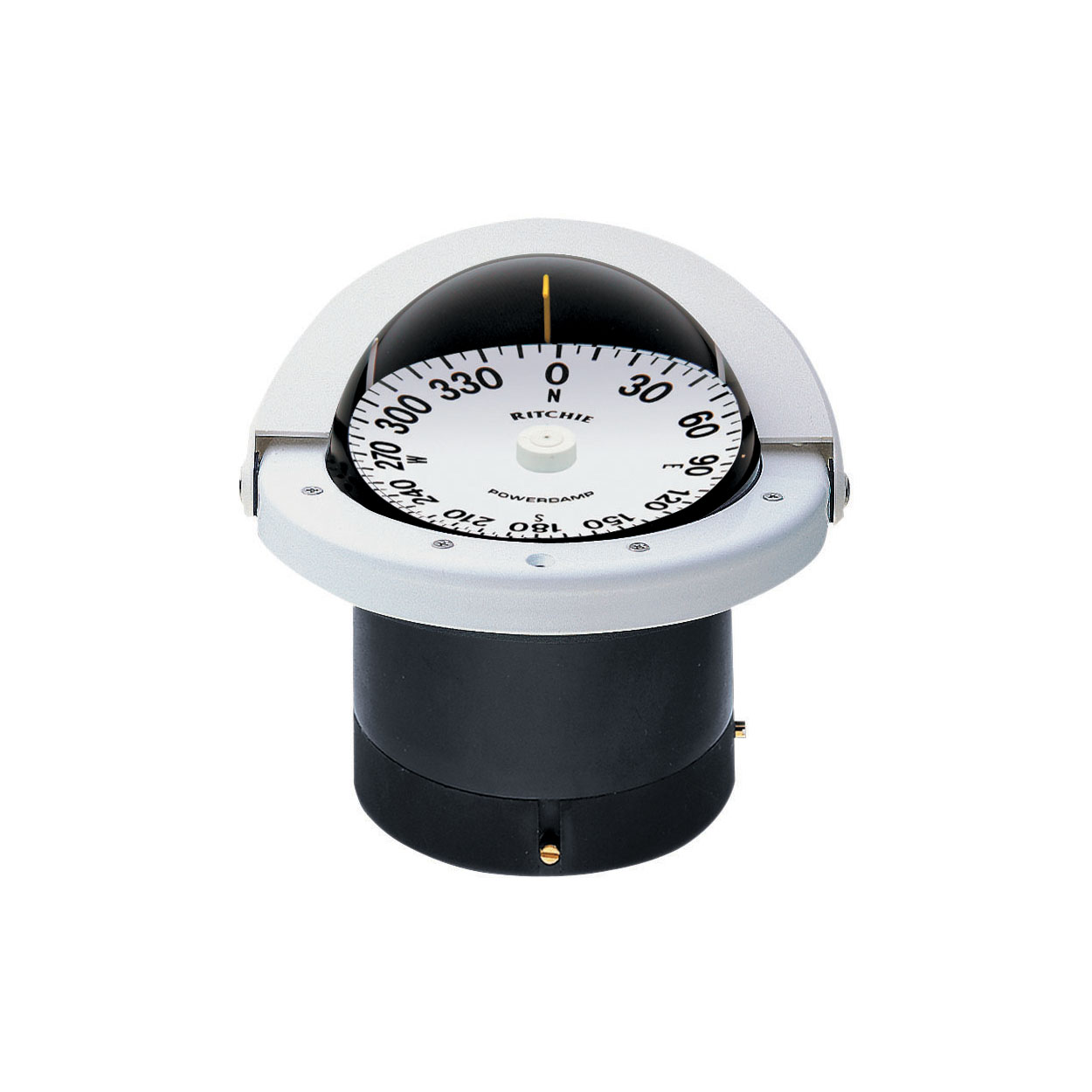

Navigator Compass Features
- 4 1/2″ PowerDamp Flat Card Dial with Large Numerals
- Easily Installed, Fits 4.75″ (12.06 cm) to 5.125″ (13.02 cm) Mounting Hole. Click here to view a template of the mounting hole (NOTE: Adobe versions may differ; download and print the template to actual size).
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- 12V Green LED lighting Standard
- Built-in Compensators to Easily Adjust for Deviation
- Movable Sun Shield
- 45 Degree Lubber Lines
- High Temperature Construction for Extended Operating Range
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Protective Cover: N-203-C
Mounting Gasket: NV-0175
Approx. Shipping Weight: 2 lbs. 10 oz. (1.19 kg)
Notes: Comes standard with 12V lighting. 24 & 32 volt lighting options are available. Some custom built OEM models may have different lighting.
For Navigators built before 1986 please see the service manual page 6- 12 or contact Ritchie for replacement lighting.
